TURNBUCKLE US TYPE DROP FORGED JAW AND JAW

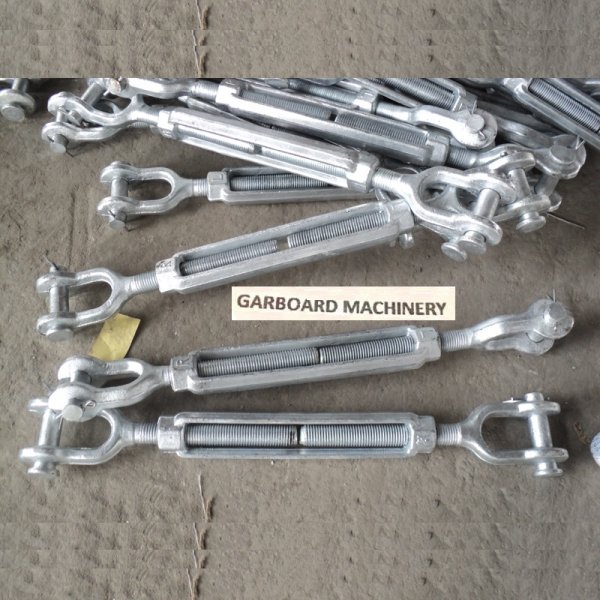

Jaw & Jaw turnbuckles feature a jaw end fitting on both ends. Jaws, the most highly stressed part of the assembly, endure quenched and tempered process to provide consistent performance for critical applications. These turnbuckles are available in sizes ranging from 1/4″ to 2-3/4″ to fit every project.

[email protected]

chris-yushanwei

+86-13953206937

Send Message

Products Introduction| Specifications| Related Products| Inquiry

Products Introduction

Product Features:

Meets the design requirements of US Federal Specifications.

End fittings are Quenched and Tempered, bodies heat treated by normalizing.

Jaws are forged with a greater cross sectional area that results in a stronger jaw with better fatigue properties.

Turnbuckles recommended for straight or in-line pulls only.

Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.

Certified for Lifting.

Specifications

US TYPE DROP FORGED TURNBUCKLE JAW JAW

Specifications

Thread Dia.& Take Up (in.)	Working Load Limit (lbs.)	Weight Each (lbs.)	Dimensions (in.)
Thread Dia.& Take Up (in.)	Working Load Limit (lbs.)	Weight Each (lbs.)	A	B	E Closed	G	J Open	K Closed	M Open	N Closed	BB
1/4X4	500	0.37	0.25	0.45	1.66	0.64	11.19	7.19	12.18	8.18	4.07
5/16X4-1/2	800	0.56	0.31	0.50	2.02	0.87	13.07	8.57	14.12	9.62	4.58
3/8X6	1200	0.85	0.38	0.53	2.11	0.85	16.25	10.25	17.50	11.50	6.10
1/2X6	2200	1.82	0.50	0.64	3.22	1.07	18.65	12.65	20.14	14.14	6.03
1/2X9	2200	2.29	0.50	0.64	3.20	1.07	24.94	15.94	26.43	17.43	9.36
1/2X12	2200	2.71	0.50	0.64	3.20	1.07	30.94	18.94	32.43	20.43	12.36
5/8X6	3500	3.21	0.63	0.79	3.90	1.32	19.74	13.74	21.82	15.82	6.03
5/8X9	3500	3.95	0.63	0.79	3.89	1.32	26.08	17.08	28.16	19.16	9.39
5/8X12	3500	4.58	0.63	0.79	3.89	1.32	32.08	20.08	34.16	22.16	12.39
3/4X6	5200	4.80	0.75	0.97	4.71	1.52	21.09	15.09	23.68	17.68	6.13
3/4X9	5200	5.85	0.75	0.97	4.68	1.52	27.49	18.49	30.08	21.08	9.59
3/4X12	5200	6.72	0.75	0.97	4.68	1.52	33.49	21.49	36.08	24.08	12.59
3/4X18	5200	8.45	0.75	0.97	4.71	1.52	45.49	27.49	48.08	30.08	18.53
7/8X12	7200	9.37	0.88	1.16	5.50	1.77	34.65	22.65	37.62	25.62	12.16
7/8X18	7200	11.8	0.88	1.16	5.50	1.77	47.12	29.12	50.09	32.09	18.63
1X6	10000	10.4	1.00	1.34	6.09	2.05	23.82	17.82	27.18	21.18	6.18
1X12	10000	13.8	1.00	1.34	6.09	2.05	35.82	23.82	39.18	27.18	12.18
1X18	10000	17.1	1.00	1.34	6.09	2.05	47.82	29.82	51.18	33.18	18.18
1X24	10000	21.0	1.00	1.34	6.06	2.05	60.42	36.42	63.78	39.78	24.84
1-1/4X12	15200	21.9	1.25	1.84	8.09	2.82	39.37	27.37	43.58	31.58	12.06
1-1/4X18	15200	25.9	1.25	1.84	8.09	2.82	51.37	33.37	55.58	37.58	18.06
1-1/4X24	15200	29.8	1.25	1.84	8.09	2.82	63.93	39.93	68.14	44.14	24.62
1-1/2X12	21400	32.6	1.50	2.06	8.93	2.81	40.76	28.76	45.68	33.68	12.32
1-1/2X18	21400	38.0	1.50	2.06	8.93	2.81	52.76	34.76	57.68	39.68	18.32
1-1/2X24	21400	43.5	1.50	2.06	8.93	2.81	65.38	41.38	70.30	46.30	24.94
1-3/4X18	28000	53.5	1.75	2.60	9.36	3.35	53.35	35.35	59.16	41.16	18.37
1-3/4X24	28000	61.1	1.75	2.60	9.36	3.35	65.35	41.35	71.16	47.16	24.37
2X24	37000	96.3	2.00	2.62	11.80	3.74	69.64	45.64	76.72	52.72	24.48
2-1/2X24	60000	167	2.50	3.06	13.26	4.44	72.97	48.97	82.18	58.18	24.60
2-3/4X24	75000	199	2.75	3.69	14.92	4.19	74.75	50.75	85.50	61.50	24.65
