TURNBUCKLE US TYPE DROP FORGED EYE AND EYE
Eye & Eye Turnbuckles are one of the most common steel turnbuckles. Made of galvanized steel, these turnbuckles are formed to withstand the nastiest of corrosive environments. Our eye & eye turnbuckles have elongated eyes on each end for less stress on the eye and for easier connection of other rigging hardware. The body of the turnbuckle features a reverse thread on each end to allow for tightening/loosening by simply turning the body of the turn buckle. These turnbuckles are available in sizes ranging from 1/4″ to 2-3/4″ to fit every project.
Products Introduction
Product Features:
Meets the design requirements of US Federal Specifications.
End fittings are Quenched and Tempered, bodies heat treated by normalizing.
Turnbuckles recommended for straight or in-line pulls only.
Proof tested to 2 x WLL and Minimum Break Force is 5 x WLL.
Excellent Fatigue Rating.
Certified for Lifting.
Specifications
| Thread Dia.& Take Up (in.) | Working Load Limit (lbs.) | Weight Each (lbs.) | Dimensions (in.) | ||||||||

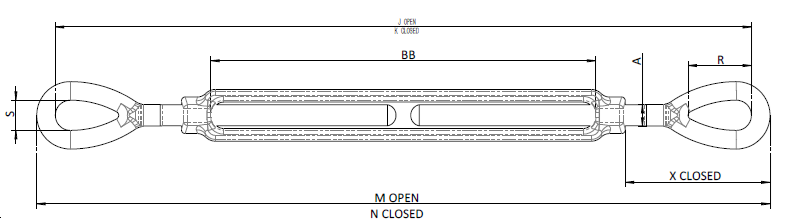

| A | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | |||
| 1/4X4 | 500 | 0.29 | 0.25 | 11.94 | 7.94 | 12.38 | 8.38 | 0.81 | 0.34 | 1.76 | 4.07 |
| 5/16X4-1/2 | 800 | 0.48 | 0.31 | 13.92 | 9.42 | 14.48 | 9.98 | 0.95 | 0.44 | 2.20 | 4.58 |
| 3/8X6 | 1200 | 0.75 | 0.38 | 17.56 | 11.56 | 18.24 | 12.24 | 1.13 | 0.53 | 2.48 | 6.10 |
| 1/2X6 | 2200 | 1.72 | 0.50 | 19.94 | 13.94 | 20.82 | 14.82 | 1.41 | 0.71 | 3.56 | 6.03 |
| 1/2X12 | 2200 | 2.63 | 0.50 | 32.23 | 20.23 | 33.11 | 21.11 | 1.41 | 0.71 | 3.54 | 12.36 |
| 5/8X6 | 3500 | 2.75 | 0.63 | 21.72 | 15.72 | 22.72 | 16.72 | 1.80 | 0.88 | 4.35 | 6.03 |
| 5/8X12 | 3500 | 4.12 | 0.63 | 34.06 | 22.06 | 35.06 | 23.06 | 1.80 | 0.88 | 4.34 | 12.39 |
| 3/4X6 | 5200 | 4.22 | 0.75 | 23.24 | 17.24 | 24.50 | 18.50 | 2.09 | 1.00 | 5.12 | 6.13 |
| 3/4X12 | 5200 | 6.12 | 0.75 | 35.64 | 23.64 | 36.90 | 24.90 | 2.09 | 1.00 | 5.09 | 12.59 |
| 3/4X18 | 5200 | 7.83 | 0.75 | 47.64 | 29.64 | 48.90 | 30.90 | 2.09 | 1.00 | 5.12 | 18.53 |
| 7/8X12 | 7200 | 8.83 | 0.88 | 36.70 | 24.70 | 38.20 | 26.20 | 2.38 | 1.25 | 5.79 | 12.16 |
| 7/8X18 | 7200 | 11.50 | 0.88 | 49.17 | 31.17 | 50.67 | 32.67 | 2.38 | 1.25 | 5.79 | 18.63 |
| 1X6 | 10000 | 9.62 | 1.00 | 26.24 | 20.24 | 28.00 | 22.00 | 3.00 | 1.43 | 6.50 | 6.18 |
| 1X12 | 10000 | 13.00 | 1.00 | 38.24 | 26.24 | 40.00 | 28.00 | 3.00 | 1.43 |
