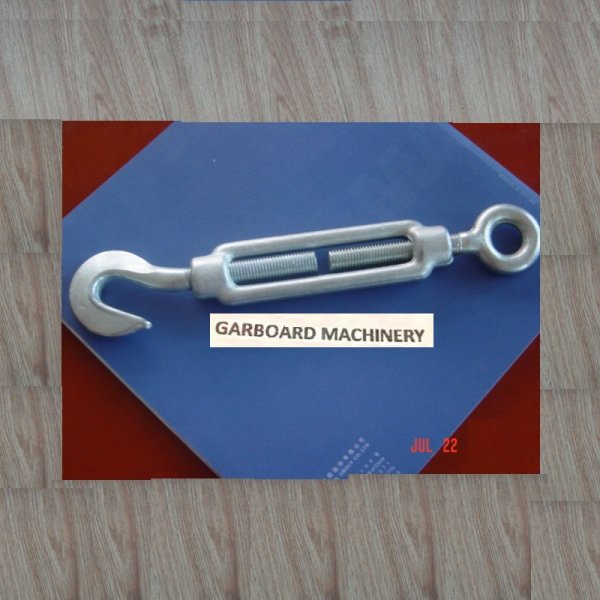

TURNBUCKLE DIN1480 DROP FORGED HOOK AND EYE
Din1480 Drop Forged Turnbuckle Hook & Eye, Eye & Eye, Hook & Hook
Galvanized Turnbuckle (aka Straining Screw) DIN1480 with eye and hook, these turnbuckles are available in sizes ranging from M5 to M42 to fit every project and are made from super carbon steel for maximum corrosion resistance and durability. They are ideal for marine and industrial applications.
Products Introduction
Product Features:
Process: Drop Forged.
Material: Carbon Steel or Alloy Steel.
Finish: Self-Colored, Galvanized, Plated.
Special specifications and marks can be made according to customer’s requirement.

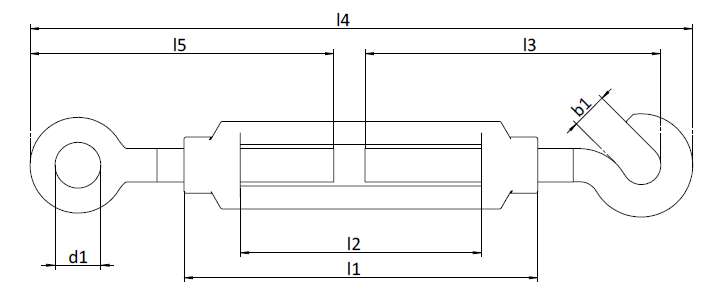

Specifications
| THREAD (MM) | L1 (MM) | L2 (MM) | L3 (MM) | B1 (MM) | L4 (MM) | D1 (MM) | L5 (MM) | WEIGHT (KG)PER 100 PCS. |
| M6 | 110 | 80 | 85 | 8.5 | 80 | 9 | 172 | 9.5 |
| M8 | 110 | 75 | 85 | 11 | 84 | 10 | 182 | 16.5 |
| M10 | 125 | 85 | 112 | 13.5 | 105 | 14 | 213 | 29 |
| M12 | 125 | 80 | 117 | 15.5 | 115 | 16 | 238 | 43 |
| M14 | 140 | 90 | 122 | 18.5 | 122 | 18 | 263 | 62 |
| M16 | 170 | 110 | 138 | 19 | 165 | 22 | 320 | 92 |
| M20 | 200 | 130 | 170 | 20.5 | 167 | 24 | 367 | 163 |
| M22 | 220 | 145 | 185 | 26 | 167 | 27 | 398 | 220 |
| M24 | 255 | 170 | 205 | 26 | 205 | 27 | 447 | 300 |
| M30 | 255 | 160 | 225 | 33 | 255 | 31 | 512 | 460 |
| M36 | 295 | 180 | 255 | 44 | 276 | 43 | 568 | 768 |
| M42 | 330 | 200 | 340 | 48 | 260 | 49 | 683 | 1290 |
| M48 | 355 | 195 | 360 | 58 | 300 | 58 | 755 | 2100 |
Specifications
