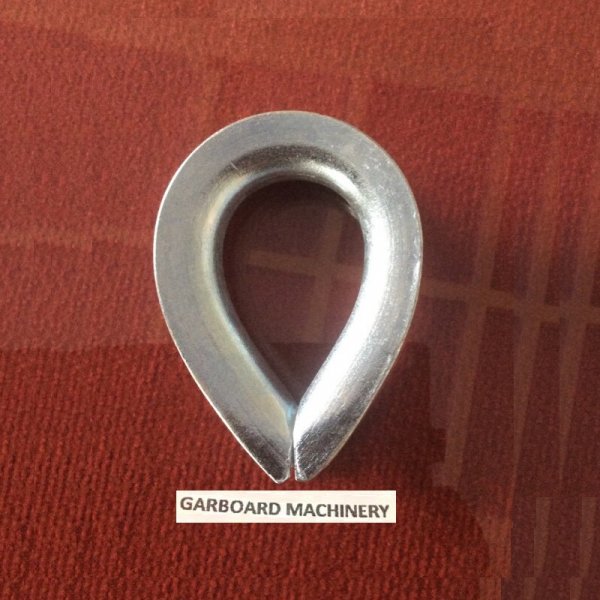

BS464 WIRE ROPE THIMBLE
One of the most popular ways to finish the end of a wire rope is to splice it into a loop or an eye. This provides a simple way to attach the wire rope to any anchor point. A Steel Wire Rope Eye or Thimble can be installed inside the Loop to preserve the natural shape, it also protects the cable from pinching and abrading on the inside of the loop.
Products Introduction
Product Features:
Thimbles to give protection to the eye of the wire rope.
Material: Steel.
Finish: Galvanized.
Generally, to BS 464 – Table 1 – 1958.
Specifications
| BRITISH STANDARD BS464 WIRE ROPE THIMBLE | |||||||
| SIZE | DIMENSION(IN.) | WEIGHT | |||||
| IN. | A | B | C | D | E | F | KG/PC |
| 5/16" | 2-1/8" | 1-5/16" | 1-1/2" | 7/8" | 1/2" | 5/16" | 0.065 |
| 3/8" | 2-1/2" | 1-1/2" | 1-7/8" | 1" | 9/16" | 13/32" | 0.091 |
| 7/16" | 2-7/8" | 1-1/2" | 2-1/8" | 1-1/8" | 11/16" | 1/2" | 0.12 |
| 1/2" | 3-1/8" | 1-3/4" | 2=5/16" | 1-1/4" | 13/16" | 9/16" | 0.16 |
| 9/16" | 3-1/8" | 1-3/4" | 2-5/16" | 1-1/4" | 13/16" | 9/16" | 0.172 |
| 5/8" | 3-7/8" | 2-5/16" | 2-15/16" | 1-5/8" | 7/8" | 5/8" | 0.26 |
| 11/16" | 4-1/4" | 2-5/8" | 3-1/8" | 1-3/4" | 1-1/8" | 3/4" | 0.34 |
| 3/4" | 4-7/8" | 2-7/8" | 3-5/8" | 2" | 1-1/8" | 13/16" | 0.45 |
| 7/8" | 4-1/4" | 3-1/4" | 4" | 2=1/4" | 1-1/4" | 7/8" | 0.62 |
| 15/16" | 5-3/4" | 3-5/8" | 4-11/16" | 2-1/2" | 1-5/16" | 1" | 0.8 |
| 1" | 6-3/8" | 4-1/4" | 4-11/16" | 2-3/4" | 1-3/8" | 1-1/16" | 0.95 |
| 1 1/8" | 7" | 4-3/8" | 5-1/4" | 3" | 1-1/8" | 1-1/8" | 1.27 |
| 1 1/4" | 7-3/4" | 5-1/4" | 6" | 3-3/4" | 1-5/8" | 1-5/16" | 1.6 |
| 1 3/8" | 9" | 6" | 6-7/8" | 4-1/8" | 1-7/8" | 1-1/2" | 2.35 |
| 1 1/2" | 10" | 6-1/2" | 7-3/4" | 4-1/2" | 2-1/8" | 1-5/8" | 3.3 |
| 1 5/8" | 10" | 6-1/2" | 7-3/4" | 4-1/2" | 2-3/16" | 1-3/4" | 3.35 |
| 1 3/4" | 11-1/4" | 7" | 9" | 5" | 2-1/4" | 2" | 6.25 |
| 1 7/8" | 12-1/4" | 7-1/2" | 9-3/4" | 5-1/4" | 2-5/8" | 2-1/8" | 7.7 |
| 2" | 13" | 8" | 10-1/8" | 5-1/2" | 2-3/4" | 2-3/8" | 8.05 |
| 2 1/8" | 13" | 8" | 10-1/8" | 5-1/2" | 2-3/4" | 2-1/2" | 8.3 |
| 2 1/4" | 14" | 8-1/2" | 10-5/8" | 5-3/4" | 3" | 2-5/8" | 8.6 |
| 2 1/2" | 16-1/4" | 9-1/2" | 12-1/4" | 6-1/4" | 3-3/4" | 2-3/4" | 17 |
