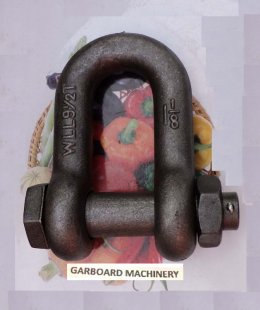

BOLT TYPE SAFETY ANCHOR SHACKLE US TYPE G-2130

Bolt type safety anchor shackles can be used in applications where round pin or screw pin shackles are used. However, a bolt type shackle is a better choice in permanent or long-term applications, or if there's a risk of a load sliding on the shackle pin, causing it to rotate.

[email protected]
chris-yushanwei
+86-13953206937
Send Message
Products Introduction| Specifications| Related Products| Inquiry
Products Introduction
Product Features:
• Material: Alloy Steel, Carbon steel.
• Finishing: Hot Dip Galvanized, Eletrico-Galvanized, or Self-colored.
• Heat treated: Tempered and Quenched.
• Maximum Proof Load is 2.0 times the Working Load Limit.
• Minimun Ultimate Strength:4 or 6 Times The Working Load Limit.
• Marking: As per customers'requirement.

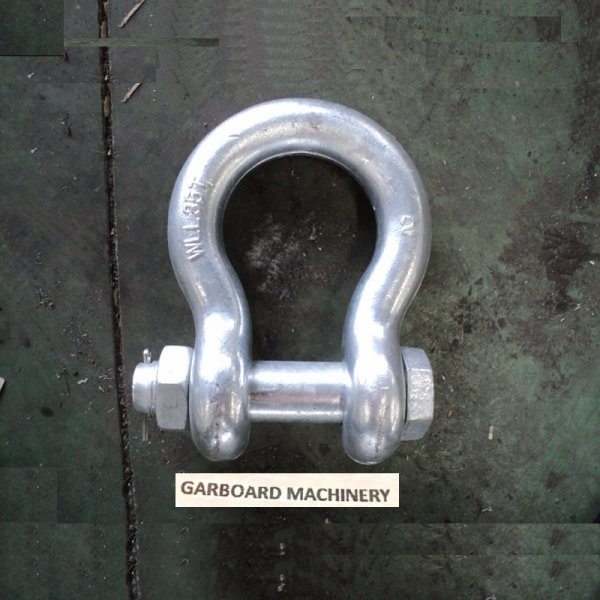

US TYPE DROP FORGED G-2130 SAFETY BOLT BOW SHACKLE
Specifications
SizeWorking
Load
Limited		WeightDimensions (in.)Tolerance +/-
(in)(t)(lbs)ABHECGPCA
 3/16 1/30.060.380.250.880.61.470.980.190.060.06
 1/4 1/2 0.110.470.311.130.781.841.280.250.060.06
 3/810.330.660.441.441.032.491.780.380.130.06
 1/220.790.810.641.881.313.282.310.50.130.06
 5/8 3-1/41.681.060.772.381.694.192.940.690.130.06
 3/4 4-3/42.721.250.892.8124.973.50.810.250.06
 7/8  6-1/23.951.441.023.312.285.834.030.970.250.06
1 8-1/25.661.691.153.752.696.564.691.060.250.06
 1-3/8 13-1/215.832.251.535.253.639.166.381.50.250.13


Specifications
